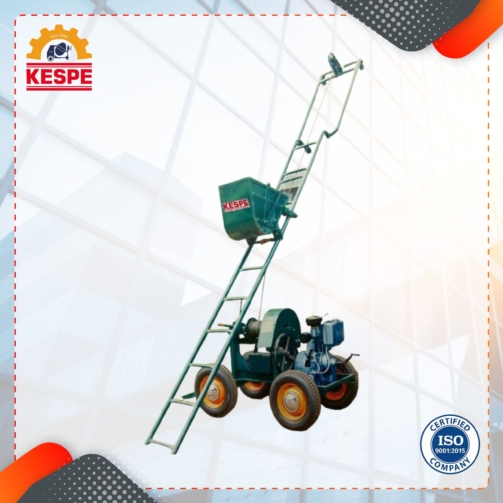

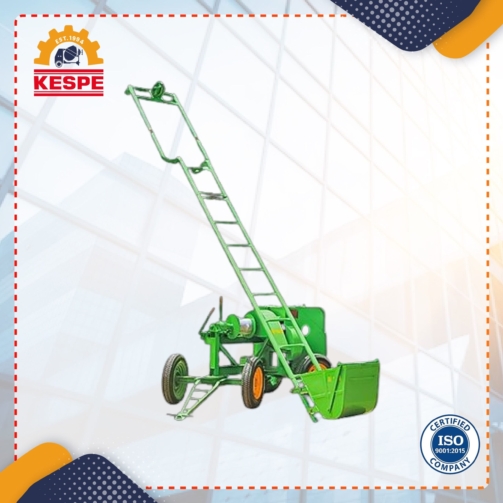

Builders Hoist

MakeKESPE
Model NameBuilders Hoist
Lift CapacityHalf / One Ton
Power TpeEngine / Electric
Power Capacity12 HP Air Cooled Engine / 7.5 or 10 HP Motor (Three Phase)
EngineKirloskar
Rope12mm to 14mm Customizable
Gear BoxYes
Rotation360 Degrees
Machine Weight1 Ton
Wire Rope12mm /14mmTested Steel Wire Rope 100 meters length certified
No. Of Wheels4 Wheels
Machine Dimension L46″ W5.5′ H37
Medium Scaffolding pipe Yes
DrumDouble Drum ,Plain Type with carriage
MountHeavy Steel Chassis with4 Casting iron wheels/ambassador wheels
Lift Mast Frame10 feet/5 feet made of sail/vi zag 65*65*6mm angle
AccessoriesTop Pulley; Bottom Pulley;5*4 Platform without planks ; L Bracket Rolling Complete mechanism

Contact Now : +91 9843098330

Share

    Builder’s Hoist: Essential for Vertical Material Movement on Construction Sites

    A Builder’s Hoist is an essential piece of equipment used on construction sites to lift heavy materials vertically. It is specifically designed to handle a variety of construction materials such as cement, sand, bricks, steel, and concrete, helping to move them efficiently to higher floors or elevated areas on-site. Whether it’s for domestic, industrial, or building construction, the builder’s hoist is a critical tool for improving efficiency, reducing labor costs, and enhancing safety.

    Key Features:

    1. Efficient Vertical Material Handling:

    • Vertical Lifting Capability: The primary function of a builder’s hoist is to lift materials vertically to higher floors of a building, from the ground level to the desired height. This makes it particularly useful on construction sites with high-rise buildings or multi-story structures, where manual labor would otherwise be too slow and unsafe for such lifting tasks.
    • Lifting Capacity: Builder’s hoists are built to handle heavy materials, with lifting capacities that can vary widely, typically ranging from 500 kg to several tons, depending on the model. This allows them to handle large volumes of concrete, steel, sand, bricks, and other heavy materials.

    2. Material Transporting:

    • Raw Material Shifting: The hoist allows for the easy transportation of raw materials (such as cement, sand, steel, bricks, and more) from one level to another within the construction site. By using hoist platforms or buckets, materials are securely lifted and moved vertically with minimal handling.
    • Convenient Loading and Unloading: With well-designed platforms or baskets, materials can be loaded onto the hoist quickly and unloaded at the destination floor with ease. This improves workflow and ensures the timely movement of essential construction materials.
